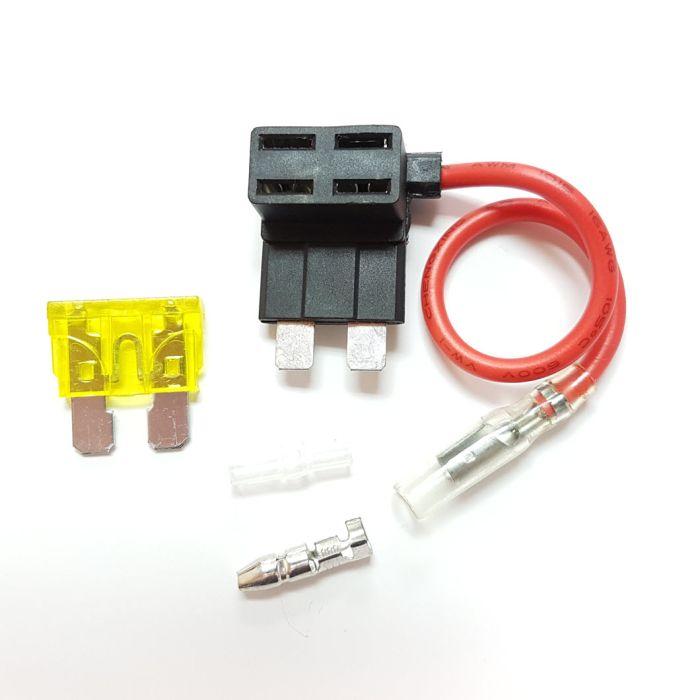

Lightforce CBFUSE1 Driving Light Fuse Tap - Standard Blade

Turns the standard single factory fuse into two, one for the existing OEM fuse and a second fuse for the new circuit. Does not require cutting or splicing to add extra power circuits for additional accessories. No alteration required to the vehicles electrical system 100% reversible. Terminated with factory crimped bullet terminals with matching terminal and boot supplied ensuring long term reliability. Comes in a pack of 3!

FEATURES:

• Available in four fuse types
• Includes accessory fuse
• Includes uncrimped male terminal and insulation
• Wire gauge 16 AWG length approximately 140mm
• 105°c heat resistance wire
• Wire length approximately 130mm.

SPECIFICATIONS:

• Rated current: Installation rating up to 20A (Max)
• Dielectric strength for 60 second: AC1500V (Min)
• Insertion & extraction force: 1Kg (Min)
• Contact resistance at 1A DC: 5m? (Max)
• Insulation resistance at 500V DC: 100M? (Min)
• Voltage drop: 20mV (Max)
• Moulded Parts: Nylon PA66 UL 94V-0
• Terminals Brass: tin plated
• Wire Gauge: #16 AWG UL 1015
